ASSEMBLY POTENTIOMETER AUTOMATIC PRODUCTION LINE

Lead Time:

ASSEMBLY POTENTIOMETER AUTOMATIC PRODUCTION LINE

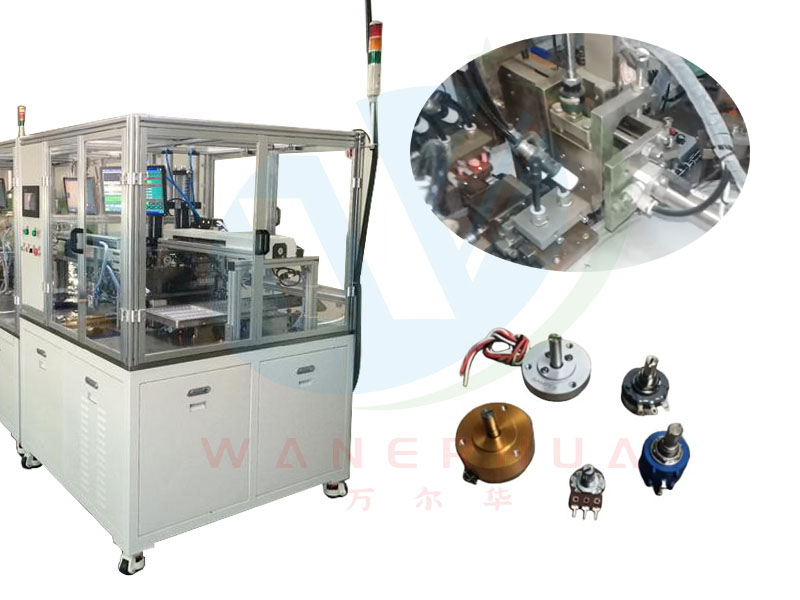

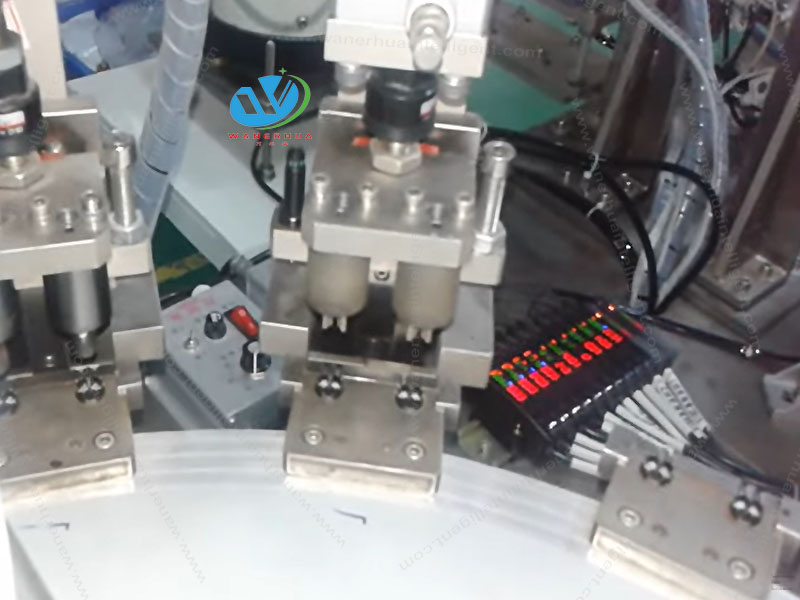

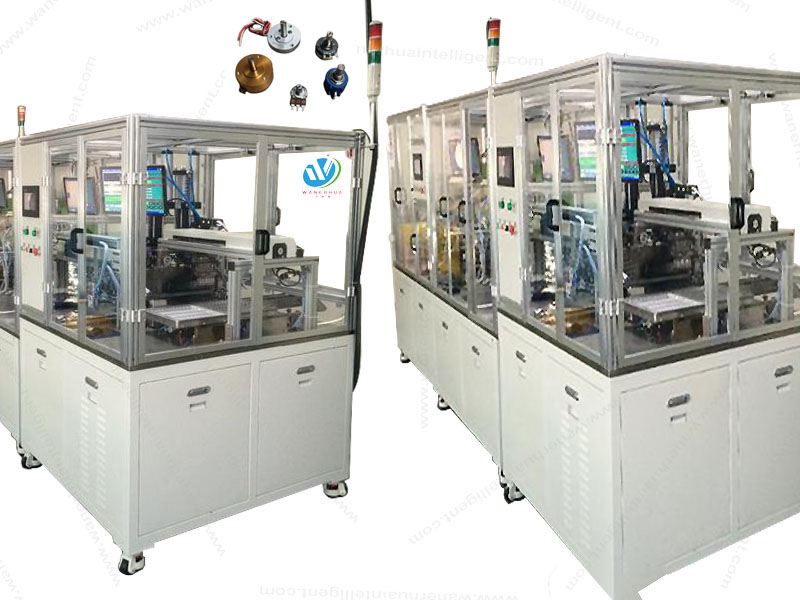

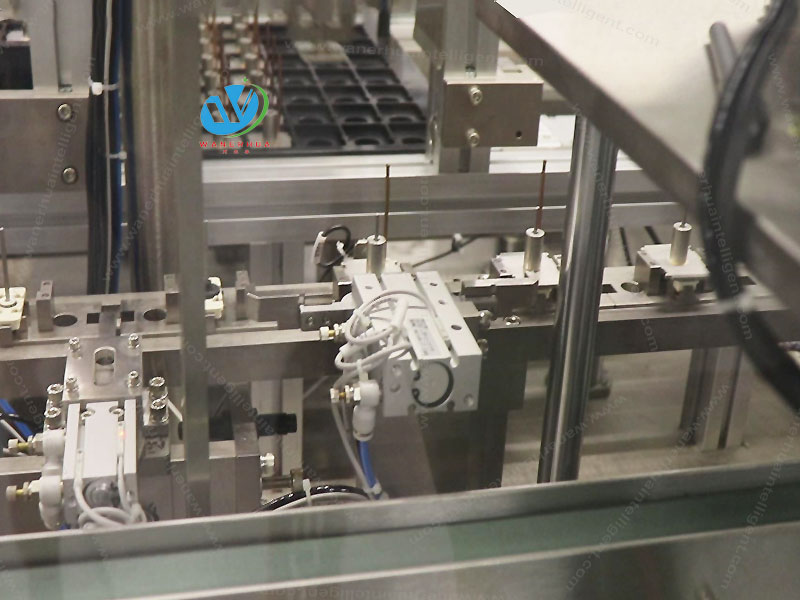

Assembly Potentiometer Automatic Production Line includes a workbench, a spring assembly turntable, and an assembly turntable installed in the middle of the workbench. There are multiple fixtures including a lifting rod, a fixed seat feeding mechanism, a spring automatic forming device, a spring assembly flipping mechanism, etc. At the base of the locator, there are feeding mechanisms, knob feeding mechanisms, etc., which can achieve automatic assembly of all components and high production efficiency.

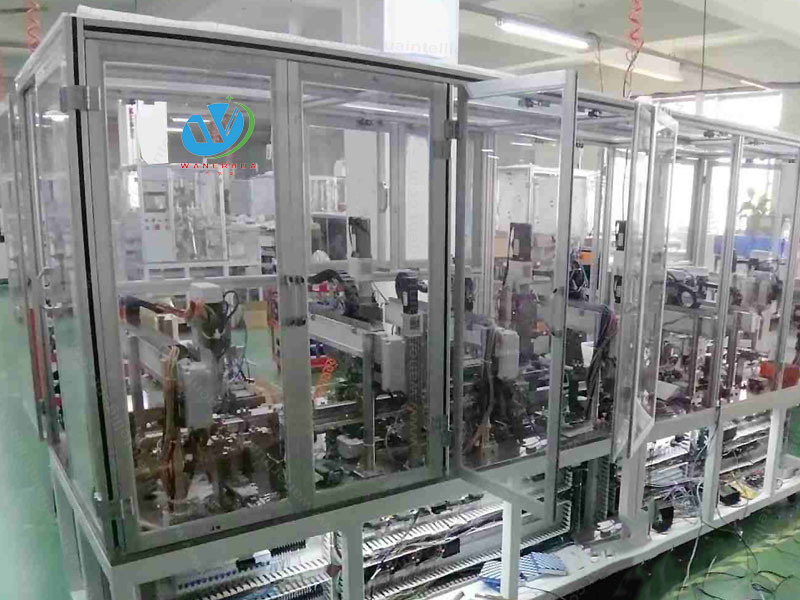

Assembly Potentiometer Automatic Production Line is composed of three rotating tables and it has a system used for unloading the pieces inside the trays. The machine is completely automatic, the operator just loads the components in the feeding systems.

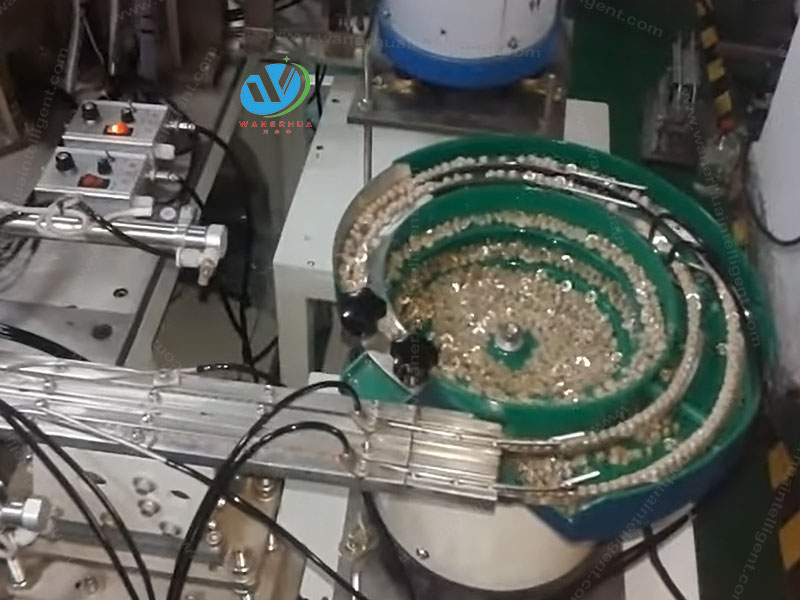

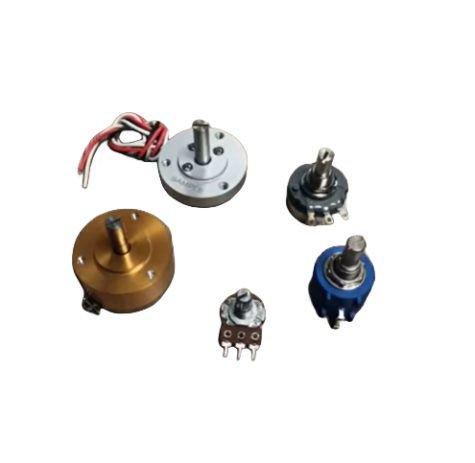

Assembly Potentiometer Automatic Production Line realizes the automatic production of potentiometers. The terminals and framework are automatically loaded and inserted with vibrating hopper, and also detected and unloading automatically after completion. It has the characteristics of cost saving, simple operation, high efficiency and stable product quality.

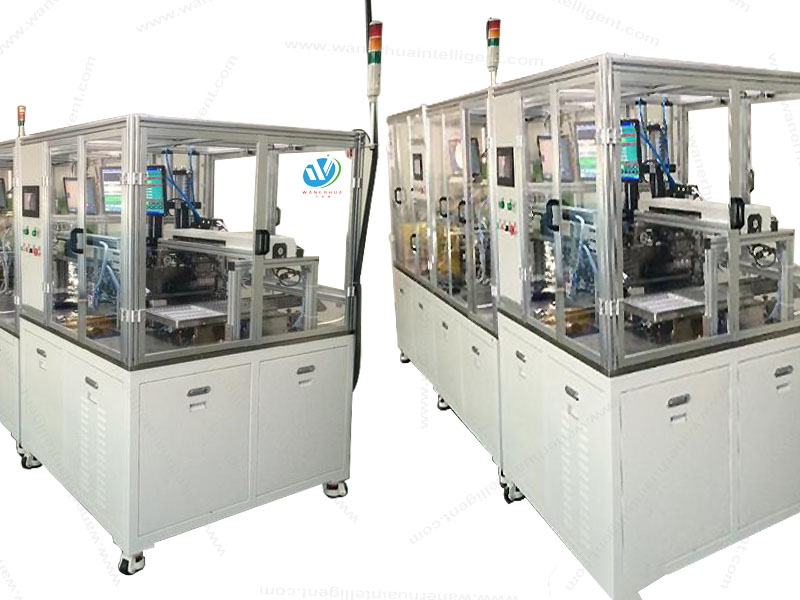

Assembly Potentiometer Automatic Production Line

WEH can customize non-standard equipment according to your product production process and production efficiency requirements. This customized equipment is suitable for various parts, and testing can better improve the production capacity and quality of products. Using intelligence instead of manual labor can save a lot of costs and improve efficiency.



1)、 Equipped with high - precision sensors, visual inspection systems, etc.

2)、 The equipment has anti-leakage, less installation, wrong installation and post-installation quality inspection.

3)、 The equipment is ergonomically designed, simple and easy to operate

4)、 The equipment has the function of door opening and air pressure safety protection

5)、 The equipment prompts various mis - operations and bad states in real time

6)、 When the equipment is abnormal, an abnormal alarm will be displayed on the screen to prompt the abnormal

location, which is convenient for manual operation.

Technical Parameters:

1、PLC control system.

2、Automatic counting and output setting.

3、Touch screen, simple operation, and safety.

4、Fully automatic feeding and assembling. Automatic riveting, AB foot assembling, reed loading, electrical inspection, dust removal shell, laser marking, and collect plates. Auto-start / stop when there is material (or no material) detected. Detect parts presence, the good products and NG products will be unloaded separately.

5、All steel parts of the machine are chrome-plating, and all aluminum parts are anodized.

6、Automatic alarming in case of abnormal shutdown and reporting abnormal information.

Q: 1、Are you a factory or trading company?

A: We are an CE and ISO proved manufacturer specialized in automation equipment R&D and manufacturing in the fields of switches, motors, cooling fans, medical and other industrial areas since 2007.

Q: 2、How can we get the proposal and quotation sheet for automation equipment as our request?

A: Pls kindly supply us the following details as below:
2D/3D product drawings.
Capacity request.

Surface treatment requirements.
Samples send to our address for engineer evaluating.
After all information obtained, We will try to send you the proposal for confirmation within one week!!!!!

As soon as you confirm our proposal, we will send you the formal quotation sheet ASAP.

Q: 3、Where is your factory located?

A: Our factory is located in Xiamen, Fujian, China. Warmly welcome your visit to our factory. As soon as your schedule settle down, we can arrange our driver to pick up you if it's necessary.

Q: 4、How long is the warranty of your equipment?

A: One year warranty after receipt check upon delivery. And we will comprehensively provide you all kinds of technical support services in after-sale! And also, our engineers are available to service machinery overseas to do help until the machine is in good performance.

Q: 5、What is packing of this machine? Is it suitable for shipment?

A: Machine will be wrapped with shrink film to avoid any scartches, the outside packed by standard wooden case. It is suitable for shipment. After you receive machine, it's better to carefully check the overall appearance of machine. Your comments back will be highly appreciated.

Q: 6、How about payment terms and lead time:

A: 1、50% deposit upon the contract, balance against check and acceptance before shipping.
     2、It's around 10-20 days after deposit paid.
(The lead time can be negotiated according to specific situations)

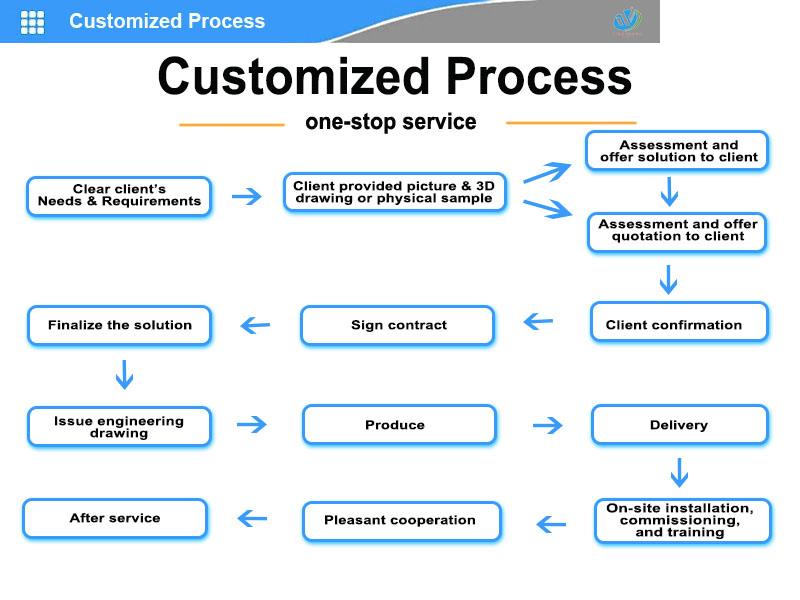

Customized Process:

Packaging  and Logistics:
