CUSTOMIZED ASSEMBLY AND RIVETING MACHINE

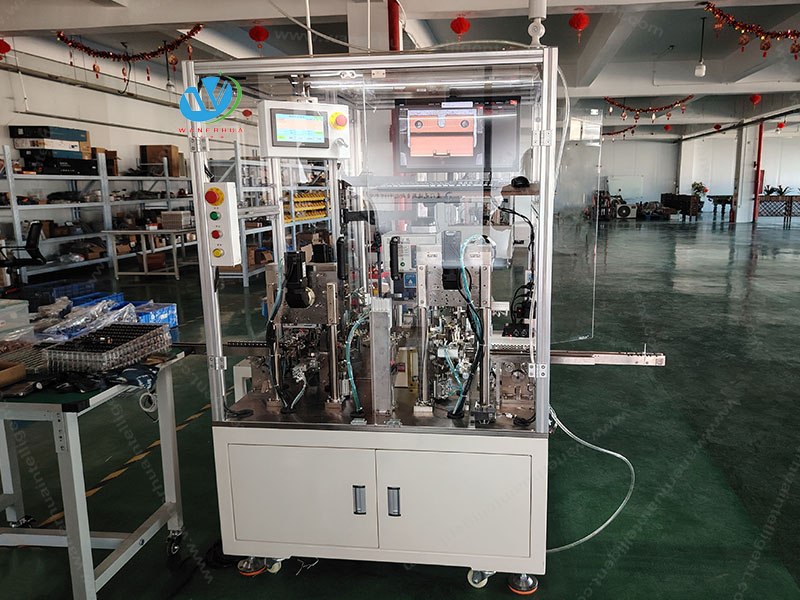

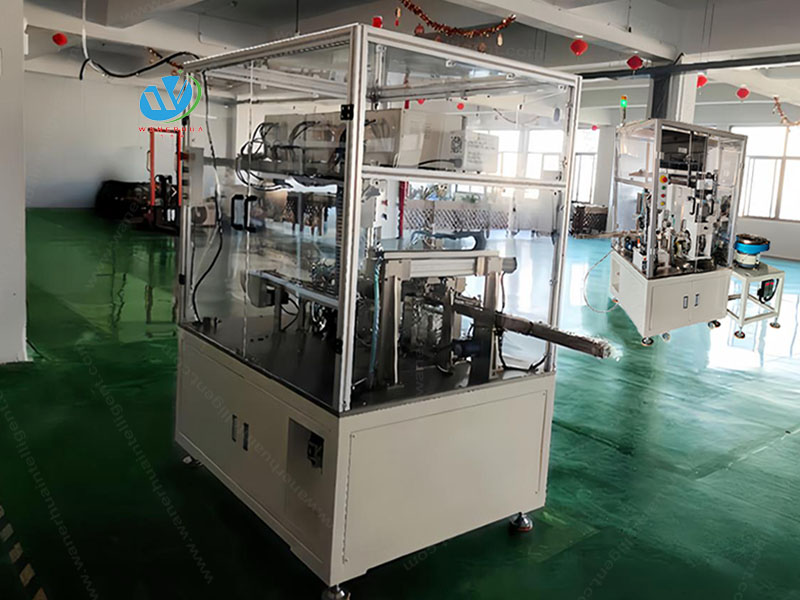

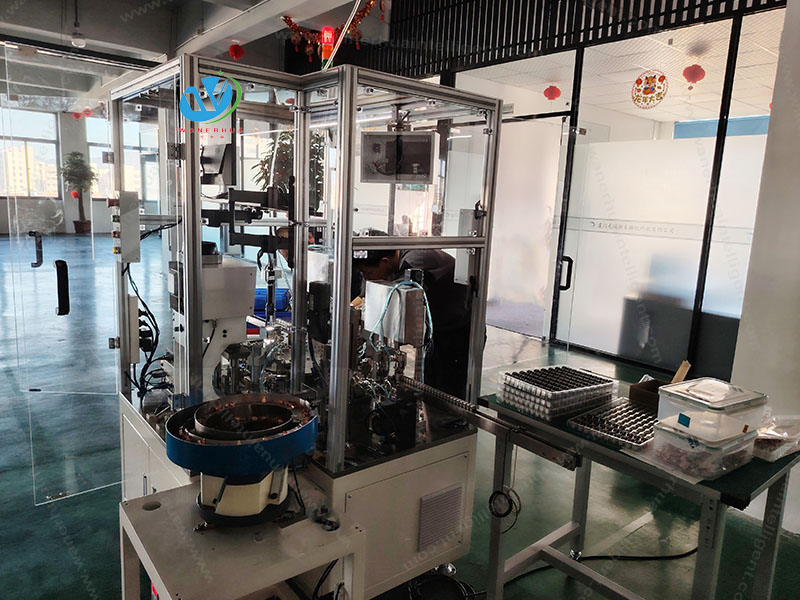

This auto riveting machine is a fully automatic magnetic latching relay reed contact assembly machine that realizes automatic assembly and automatic riveting of reeds, conductive sheets, and contacts, automatic unloading, and automatic rejection of defective products.

  • Item No :

    WEH- R45 - 4-3
  • Order(MOQ) :

    1
  • Work efficiency: :

    800 - 1000 PCS / H
  • Payment :

    T/T, L/C
  • Product Origin :

    Xiamen, Chine
  • Color :

    Gery
  • Shipping Port :

    Xiamen
  • Lead Time :

    Negotiation
  • Weight :

    Based on actual situation

AUTO RIVETING MACHINE WORKING ASSEMBLY MACHINE





Lead Time:

Quantity (sets)

1 - 1

> 1

Lead time (days)

100

To be negotiated









Supplier Relay Riveting Assembly Machine

The automatic assembly machine for auto riveting can achieve automated production of auto riveting assembly. From part loading, loading, sorting, orientation, quality inspection, transportation, packaging, fully customized automated assembly line, reducing labor demand, improving product qualification rate, improving production efficiency, and increasing enterprise profits.





Manufacturer Assembly Machine for Automobile Relay Riveting

At Wanerhua (Xiamen) Intelligent Machinery Co., Ltd we can design and build custom riveting machines that are used in virtually any industry. We specialize in delivering turn key, ready to run riveting equipment, with integrating PLC systems, including complete automation. Our machines are offered in pneumatic, hydraulic, or with multiple settings, and varied rivet diameter and length dimensions.

We also offer technical support and engineering capabilities. Contact Wanerhua Co. to learn more.



Assembly Machine For Automobile Contact Riveting Automatic

If you are looking to automate even further, Wanerhua has experience building robotic riveting systems with bowl fed rivets, automated stamping load & unloading, and vision to confirm rivets are fully fastened and seated. Wanerhua has even built riveting systems where the robotic arm holds the workpiece while the riveting process is completed!





Manufacturers Part Riveting Automatic Assembly Equipment

1. The linear structure is simple and easy to install and maintain.

2. Operating parts adopt parts of world famous brands.

3. Highly automated and intelligent operation, no pollution.





Technical Parameters:

Work efficiency

800 -1000 pcs/hour

Applicable power supply

220VAC, 50HZ

Equipment power

6000W

Applicable air source

0.500.80Mpa (0.50Mpa is the best)

Warranty period

One year

Additional services

Professional English technology training

Brand of Main Parts

SMC Japan, SIEMENS Germany, Panasonic Japan,Keyence Japan, Schneider France, BASLER Germany, HIWIN Taiwan.









1、PLC control system.

2、Automatic counting and output setting.

3、Touch screen, simple operation, and safety.

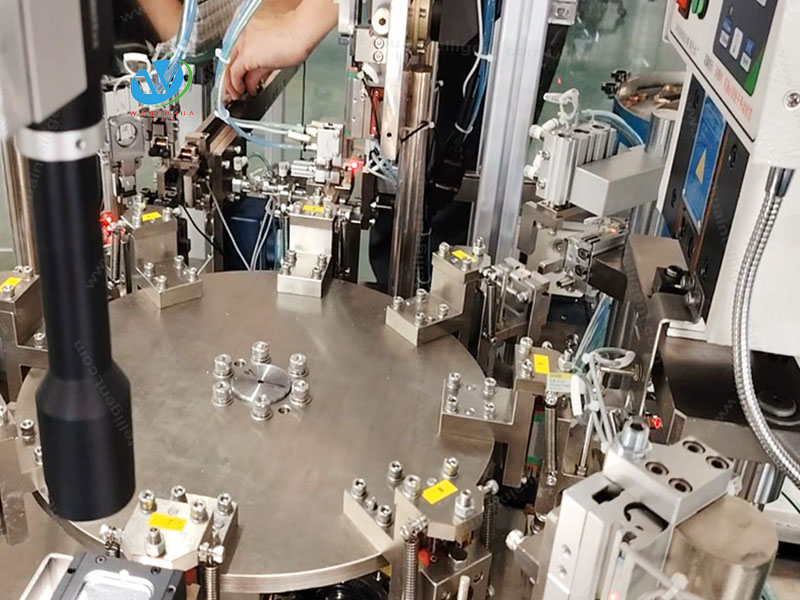

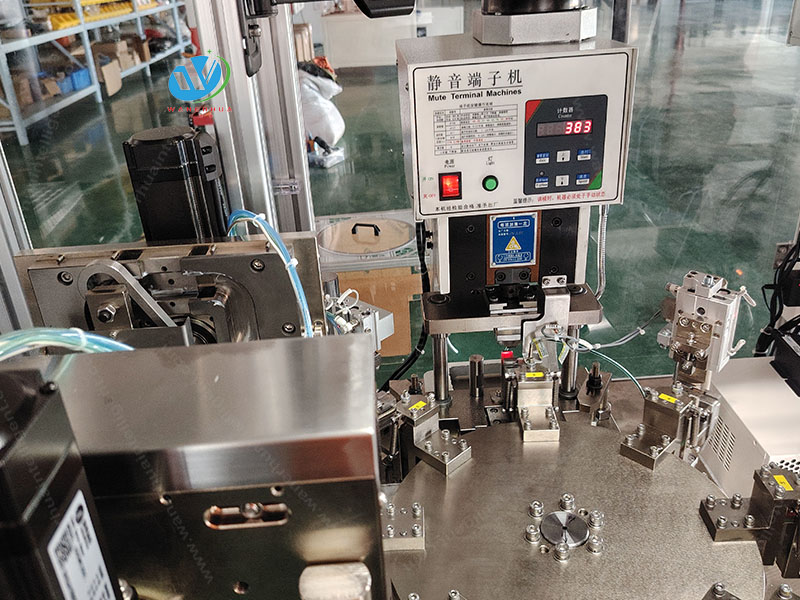

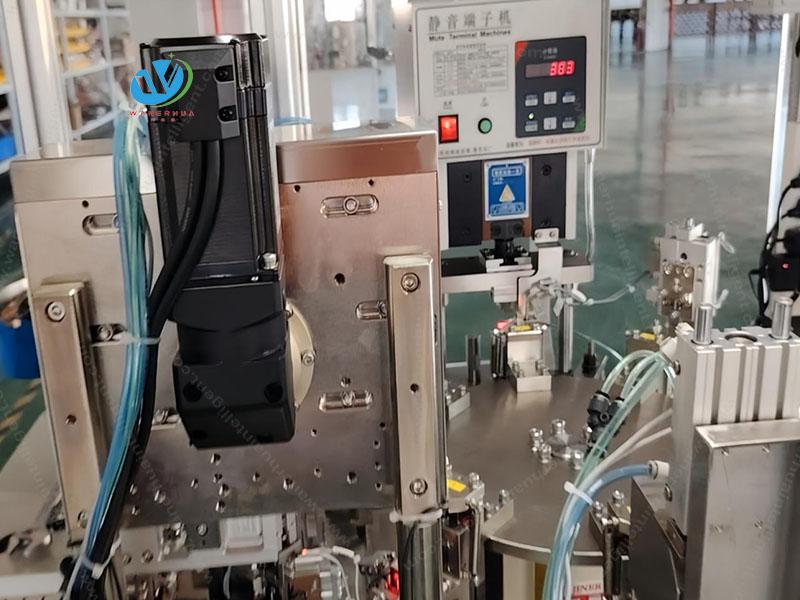

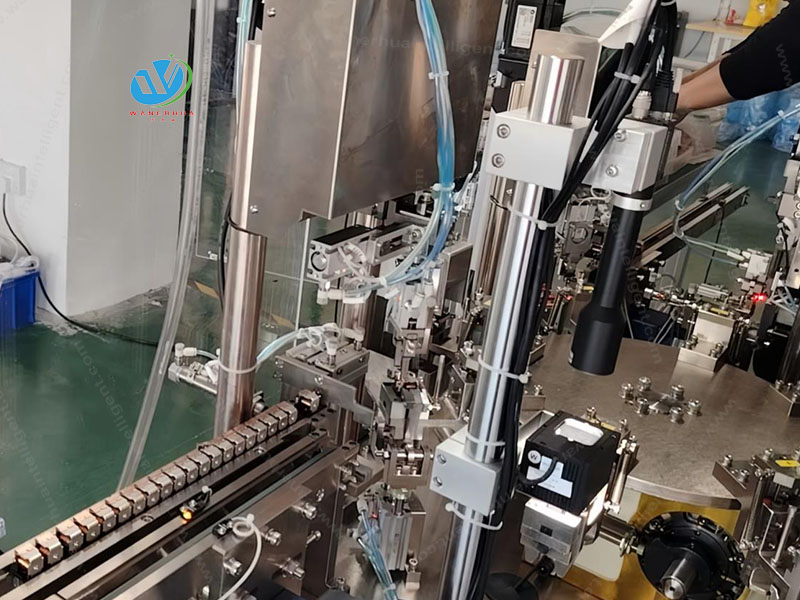

4、Fully automatic feeding and assembling. Automatic riveting, AB foot assembling, reed loading, electrical inspection, dust removal shell, laser marking, and collect plates. Auto-start / stop when there is material (or no material) detected. Detect parts presence, the good products and NG products will be unloaded separately.

5、All steel parts of the machine are chrome-plating, and all aluminum parts are anodized.

6、Automatic alarming in case of abnormal shutdown and reporting abnormal information.





Q: 1、Are you a factory or trading company?

A: We are an CE and ISO proved manufacturer specialized in automation equipment R&D and manufacturing in the fields of switches, motors, cooling fans, medical and other industrial areas since 2007.

Q: 2、How can we get the proposal and quotation sheet for automation equipment as our request?

A: Pls kindly supply us the following details as below:
2D/3D product drawings.
Capacity request.

Surface treatment requirements.
Samples send to our address for engineer evaluating.
After all information obtained, We will try to send you the proposal for confirmation within one week!!!!!

As soon as you confirm our proposal, we will send you the formal quotation sheet ASAP.

Q: 3、Where is your factory located?

A: Our factory is located in Xiamen, Fujian, China. Warmly welcome your visit to our factory. As soon as your schedule settle down, we can arrange our driver to pick up you if it's necessary.

Q: 4、How long is the warranty of your equipment?

A: One year warranty after receipt check upon delivery. And we will comprehensively provide you all kinds of technical support services in after-sale! And also, our engineers are available to service machinery overseas to do help until the machine is in good performance.

Q: 5、What is packing of this machine? Is it suitable for shipment?

A: Machine will be wrapped with shrink film to avoid any scartches, the outside packed by standard wooden case. It is suitable for shipment. After you receive machine, it's better to carefully check the overall appearance of machine. Your comments back will be highly appreciated.

Q: 6、How about payment terms and lead time:

A: 1、50% deposit upon the contract, balance against check and acceptance before shipping.
     2、It's around 10-20 days after deposit paid.
(The lead time can be negotiated according to specific situations)
